Quartz crystal resonator

Quartz crystal resonator is the use of quartz as the core components of the electronic passive components, with high quality factors and different temperature changes under the high frequency stability, is currently widely used in the demand "reference clock", "synchronization signal" All kinds of wired and wireless electronic products or systems, such as: military, mechanical, communications, electronics, medical and consumer markets, have used quartz crystal resonator of various applications.

---

SMD Seam Sealing Crystals

系列	产品图片	外部尺寸  [mm]	脚位及引线连接		频率范围  [MHz]	振动模式		绿色产品	产品资料下载
						Fund.	3rd.
JSM50		5.0 x 3.2 x 0.9	4 pads		8 ~ 125	V	V	RoHS Compliant
JSM32		3.2 x 2.5 x 0.7	4 pads		10 ~ 200	V		RoHS Compliant
JSM25		2.5 x 2.0 x 0.55	4 pads		12 ~ 66	V		RoHS Compliant
JSM20		2.0 x 1.6 x 0.5	4 pads		16 ~ 66	V		RoHS Compliant
JSM16		1.6 x 1.2 x 0.33	4 pads		30 ~ 60	V		RoHS Compliant

SMD kHz Crystals

系列	产品图片	外部尺寸  [mm]	脚位及引线连接		频率范围 [kHz]	封装类型	绿色产品	产品资料下载
JSK32		3.2 x 1.5 x 0.75	2 pads		32.768	Ceramic	RoHS Compliant
JSK20		2.0 x 1.2 x 0.6	2 pads		32.768	Ceramic	RoHS Compliant
JSK16		1.6 x 1.0 x 0.5	2 pads		32.768	Ceramic	RoHS Compliant

Resistance Welding Type Crystals

系列	产品图片	外部尺寸  [mm]	脚位及引线连接		频率范围 [MHz]	振动模式		绿色产品	产品资料下载
						Fund.	3rd.
HC-49S		11.05*4.65*3.5	2 leads		3.5 ~ 90	V	V	RoHS Compliant

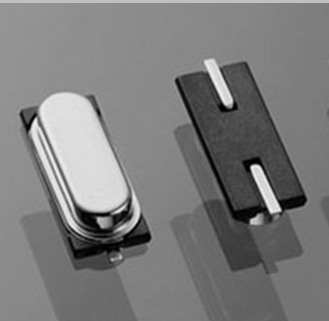

HC-49S-SMD		12.5*4.7*4.2	2 flatted leads		3.5 ~ 90	V	V	RoHS Compliant
